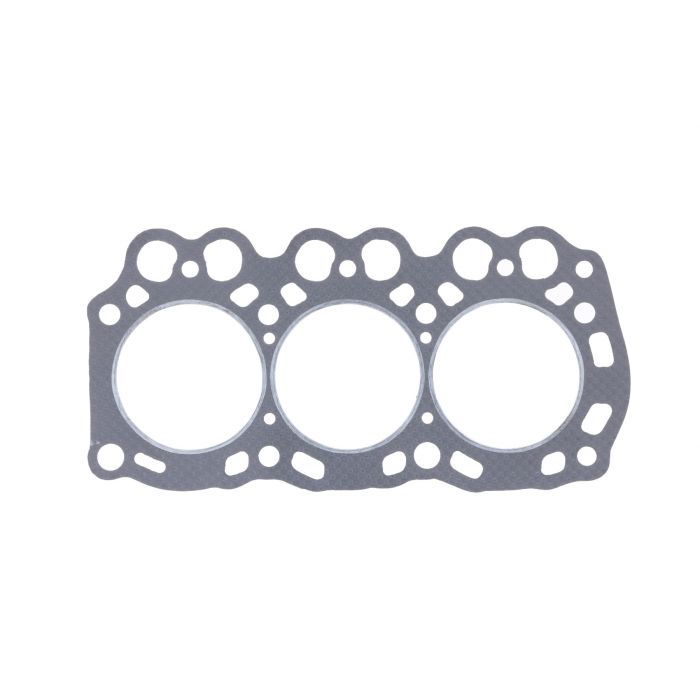

Kopfdichtung Mitsubishi L3E, L3E2, MVL3E,

Anziehreihenfolge der Kopfschrauben 1-11

Bohrung: 78 mm

Ventilspiel: 025 mm [0,0098 Zoll] (kalt)
Anzugsspannung der Kopfschrauben:
M10: 73,5-83,4 Nm / 7,5-8,5 kgm / 54,25 -61,48 lbf. ft
M8  : 19,6-29,4 Nm / 2,0-3,0 kgm / 14,47-21,70 lbf. ft

Aichi:
SH099, SH105, SH120, SH121, SH125,
U269,

Airman:
PDW200SBL,
PWP60S,

Allis Chalmers:
8010, 8030, 8050,

Ami:
GS0006M32S, GS0011M32S,

Atlas:
AM15R, AM16R, AM21R,

Avenger:
Avenger 20,

Captain:
223,

Case:
CX15 B S-2, CX17B ZTS, CX18B S-2, CX18C,

Caterpillar:
301.5CR, 301.6C, 301.8C, 302CSR, 302CCR,
MM15T E6G, MM20CR, MM20SR, MM20E4G, MM20E5G, MM20TE7G,
MX15E6D,

Crafts:
CMRA3TS,

Craftsman Marine:
CM3.27,

Daewoo / Doosan:
Solar 015 Plus, Solar 018-VT,

Doosan:
DX15, DX18,

Eurocomach:
ES150.3, ES180.3, ES250,

Farmtrac:
FT22,

Hanix:
H12A, H15A, H15B, H15B-2, H15B Plus-2, H17A, H22B,
HB15 B-2, HB15 B-2 plus,
S&B 150-2

HFL:
H3E9M1C, H3E9M1CT, H3M11M1CT,

Hinomoto:
Startrac 223,

Hyundai:
R15-7, R16-7, R16-9, R22-7,
Robex 15-7, Robex 16-7, Robex 22-7,

Imef:
HE18, HE18S,

JF Marine Power:
Generator: JF6-1500,

Kawasaki:
Mule 3010D,

Kobelco:
SK15SR-3, SK17SR, SK17SR-3, SK70SR, SK70SR-3,

Komatsu:
Solar 015 Plus,

Kiozitz:
SSV-660F,

Konvekta:
Ref. Unit L3E-61R,

Kubota:
T15-3,

Lokari:
Multitractor,

Magnum:
MLG8,
MLT3060, MLT3080, MLT4060, MLT4080, MLT5060, MLT5080,

Mahindra:
1815, 1816,

Mastervolt:
Whisper 10, Whisper 6000-1500, Whisper 6000 Ultra, Whisper 7000 Ultra, Whisper 12000-3000, Whisper 12000-3600,

Mitsubishi:
GF16, GF17, GF130, GF150, GF170,
MC17, MC18,
MM20CR, MM20SR, MM20T,
MMT16, MMT17,
MT15, MT16, MT17D, MT155, MT156, MT165, MT1800,
MX15,
TNV63C,
TNW6E, TNW6EA, TNW7E, TNW7EA, TNW45D,
VM5, VM6, VM17, VM19, VM213, VM215, VM217,
VMS18, VMS20,

Mitsubishi Engine:
L3E, L3E2, MVL3E,

Nagano:
NS15-3, NS16-3, NS22-2,

New Holland / Kobelco:
E15, E16, E16-B, E18, E18-B, E18-SR,
EC15,
RH1.17, RH1.21,

Nissan:
S&B150,

O&K:
RH1.17, RH1.21,

Pel-Job:
EB12.4, EB14, EB14.4, EB15, EB 16.4, EB150, EB150-X, EB150-XR, EB150-XT, EB150-XTV, EB200, EB200-XT, EB200XTV,
Sirius Plus,

Preet:
Avenger 20,

Ransomes / Jacobson:
4000T-23D,

Schaeff Terex:
HR1.5, HR1.6, HR2.0, HR11, HR12, HR13,
TC16, TC20, TC21,

SDMO:
Generator: Alize 6000 SDE, Alize 7500 STDE, Alize 12515 TDE, Alize 15000 TDE,
Booster 6000 SDE,
T5.5KM, T6KM, T8K, T11HKM, T11.5HKM, T12HK, T15HK,

Solé Diesel:
G-6M-15, G-6T-15, G-15M-3, G-15T-3
Mini 26,

Solis:
Solis 20,

Sonalike:
DI-20,
GT-20,

Startrac:
223,

Technogen:
MI18/4SX, MI8T / 4SX,

Teksan:
TJ15MS,

Terex Schaeff:
HR1.5, HR1.6, HR2.0, HR11, HR12, HR13,
TC15, TC16, TC20, TC21,

Toro:
GM223D, GM323D, GM324D,
RM223D, RM5100D,

Triton:
Generator: 15/6.5,

Trixon:
N4500,

Vetus Marine:
M3.09, M3.28,

Volvo:
EC13, EC13B, EC13-XR, EC13-XTV, EC14, EC15, EC15B, EC15-B XR, EC15-B XT, EC15-B XTV, EC15-XR, EC15-XT, EC15-XTV, EC20, EC20B, EC20-B XT, EC20-B XTV, EC20-XT, EC20-XTV,

Whisper Power:
SC11 3600rpm 120V/60Hz,
SQ6 1500rpm 230V/50Hz, SQ7 1800rpm 120V/60Hz,

Zeppelin:
ZR12, ZR15,
